Name: 8W/mK 1.0mm Thermal Conductive Silicone Pad for CPU GPU EV Battery
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF740HQ Series
Price: 4.10 USD
Availability: InStock

Aperçu Produits Protection thermique d'unité centrale de traitement

8W/mK 1.0mm Thermal Conductive Silicone Pad for CPU GPU EV Battery

Détails sur le produit:

Place of Origin:	China
Nom de marque:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF740HQ Series

Conditions de paiement et expédition:

Minimum Order Quantity:	1000pcs
Prix:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact

Description de produit détaillée

Products name:	8W/m-K 1.0mm Insulation gap filler silicone pad thermal conductive silicone pad for CPU GPU EV battery	Certification:	RoHS and UL recognized
Thinkness range:	1.0mmT	Sample:	Sample Avaliable
Flam rating:	94 V0	Hardness:	45±5 Shore 00
Thermal Conductivity:	8.0 W/mK	Color:	Gray
Keywords:	Thermal Pad
Mettre en évidence:	1.0mm CPU thermal pad , 8W/mK GPU thermal pad , EV battery silicone thermal pad

8W/m-K 1.0mm Insulation gap filler silicone pad thermal conductive silicone pad for CPU GPU EV battery

Company Profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF740HQ thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF740HQ Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Specific Gravity	3.5g/cc	ASTM D297
Thickness range	1.0mm	ASTM C351
Hardness (thickness ≥1.0mm)	45±5 Shore 00	ASTM 2240
Hardness (thickness ＜1.0mm)	55±5 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412
Operating Temp	-45 ~200℃	*******
Dielectric Constant	5.0 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.0W/mK	ASTM D5470

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

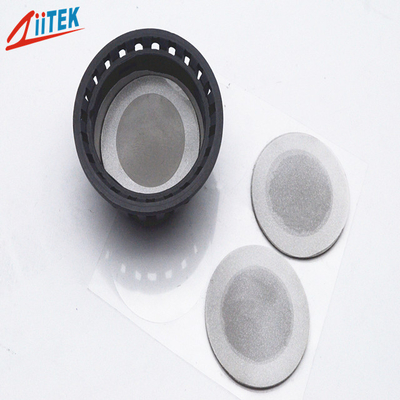

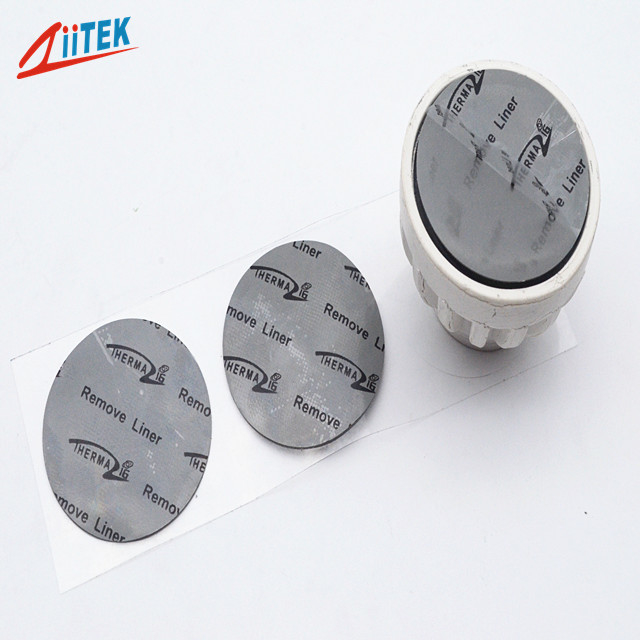

8W/mK 1.0mm Thermal Conductive Silicone Pad for CPU GPU EV Battery 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Produit Tag:

protection thermique de gpu d'ordinateur portable,

protection de refroidissement d'unité centrale de traitement,

protection thermique de carnet

Coordonnées

Dongguan Ziitek Electronical Material and Technology Ltd.

Personne à contacter: Dana Dai

Téléphone: +86 18153789196
