Name: High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-85-11US
Price: 4.10 USD
Availability: InStock

Aperçu Produits Protection thermique d'unité centrale de traitement

High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ziitek
Certification:	UL
Numéro de modèle:	TIF100-85-11US

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	0.1-10 USD/PCS
Détails d'emballage:	Cartons de 241312 cm
Délai de livraison:	3-8 jours ouvrables
Conditions de paiement:	T/T
Capacité d'approvisionnement:	100000 pièces/mois

Contact

Description de produit détaillée

Nom des produits:	Coussin thermique à haute conductivité thermique, 8.5W/MK, gestion thermique, pour le refroidissemen	Plage d'épaisseur:	0,012"(0,30 mm)~0,200"(5,0 mm)
Dureté:	35/20 rivage00	Mots-clés:	Matériaux de gestion thermique
Couleur:	Gris foncé	Construction:	Élastomère de silicone chargé en céramique
conducteur thermique:	8.5 W/mK	Application:	Refroidissement du processeur/GPU de l'ordinateur

High Thermal Conductive 8.5W/MK Thermal Management Materais Thermal Pad For Computer CPU/GPU Cooling

Company Profile

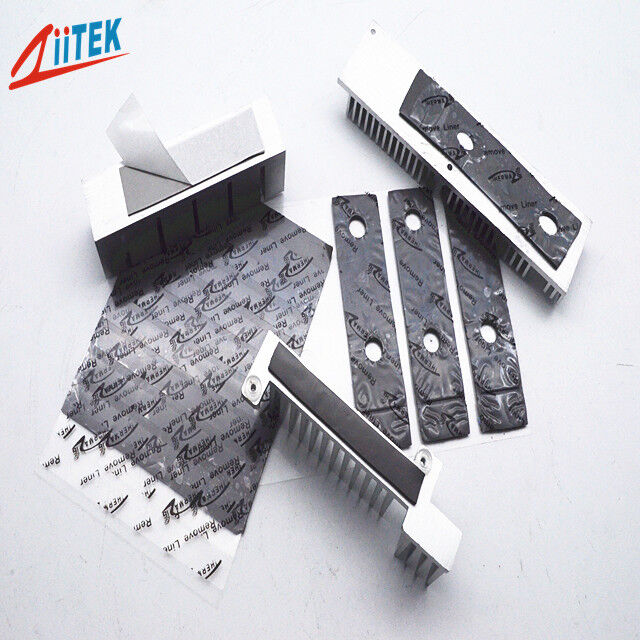

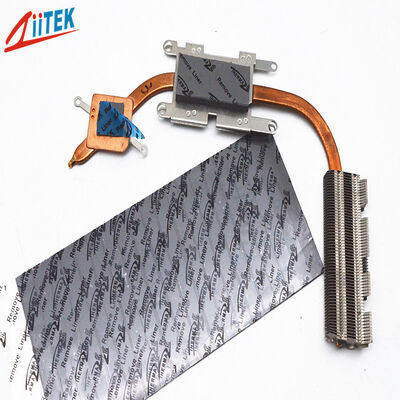

A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.

The TIF^®100-85-11US Series is a thermal pad designed specifically for environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with an almost fluid-like extreme softness, ensuring perfect contact interface fillng even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior heat dissipation solutions and physical protection for the most delicate electronic components.

Features:

> Good thermal conductive: 8.5 W/mK
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications:

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-85-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.5		ASTM D792
Thickness Range(inch/mm)	0.012~0.020	0.030~0.200	ASTM D374
	(0.30~0.50)	(0.75~5.00)
Hardness	35 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	6.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	8.5		ASTM D5470
	8.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.012" (0.30 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
