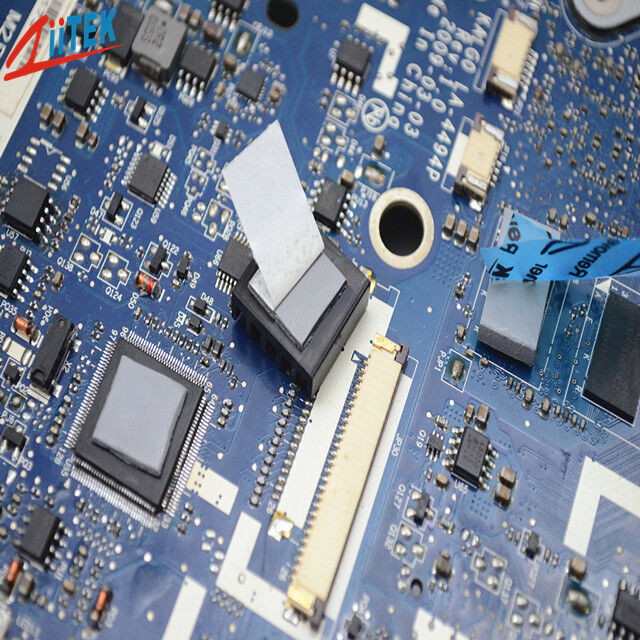

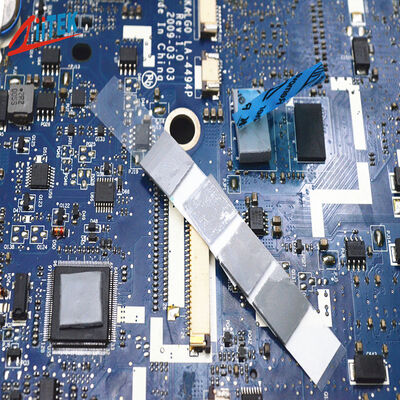

Name: Thermal Management 6.0W Thermal Gap Pads For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-60-62US
Price: 4.10 USD
Availability: InStock

Aperçu Produits Protection thermique d'unité centrale de traitement

Thermal Management 6.0W Thermal Gap Pads For AI Processors AI Servers

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ziitek
Certification:	UL
Numéro de modèle:	TIF100-60-62US

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	0.1-10 USD/PCS
Détails d'emballage:	Cartons de 241312 cm
Délai de livraison:	3-8 jours ouvrables
Conditions de paiement:	T/T
Capacité d'approvisionnement:	100000 pièces/mois

Contact

Description de produit détaillée

Nom des produits:	Protections thermiques d'écart thermique de la gestion 6.0W pour des serveurs d'AI de proces	Plage d'épaisseur:	0,010 "(0,25 mm) ~ 0,200" (5,0 mm)
Dureté:	65/20 rivage00	Mots-clés:	Coussinets d'écart thermique
Couleur:	gris	Construction:	Élastomère de silicone chargé en céramique
conducteur thermique:	6.0W/mK	Application:	Processeurs IA Serveurs IA

Thermal Management 6.0W Thermal Gap Pads For AI Processors AI Servers

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIF^®100-60-62US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low stress fit. lt is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features:

> Good thermal conductive: 6.0 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Applications:

Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.

Typical Properties of TIF^®100-60-62US Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	6.0		ASTM D5470
	6.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
