Name: High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: Z-Mousse800-10SC
Price: 4.10 USD
Availability: InStock

Aperçu Produits Feuille de mousse de silicone

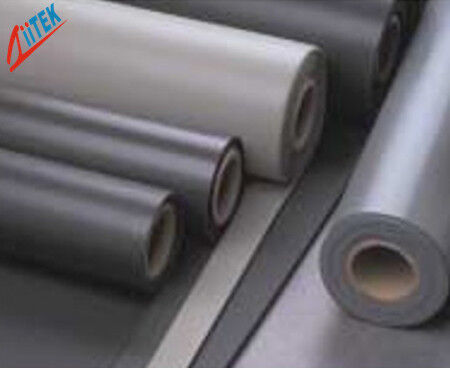

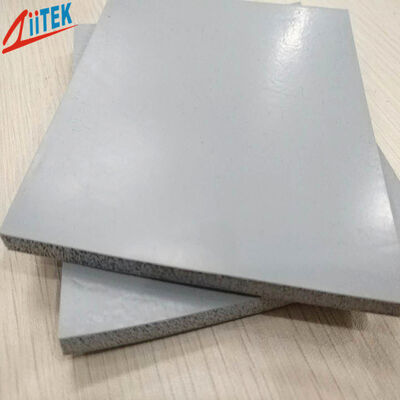

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ziitek
Certification:	ROHS
Numéro de modèle:	Z-Mousse800-10SC

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	0.1-10USD/pcs
Détails d'emballage:	Carton 241312 cm
Délai de livraison:	3-8jours de travail
Conditions de paiement:	T/T
Capacité d'approvisionnement:	10000000pcs / mois

Contact

Description de produit détaillée

Nom des produits:	Excellent matériel écumant de silicone d'absorption acoustique de résistance à hautes températur	Mot clé:	Moussage de silicone
Couleur:	gris	Densité(g/m³）:	0,37
Jeu de compression à 100 ℃（%）:	＜5,0	Structure et composant:	Caoutchouc de silicone
Application:	Véhicule électrique	Plage de température ((°C):	- 55 à 200
Résistance à la traction (MPA):	≥0.3

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Products description

Z-Foam^®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.

Features

> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> High oxygen index, low smoke,low toxicity
> Excellent performance under extreme temperatures
> Excellent resistance to compression set and creep

Application

> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets

Typical Properties of Z-Foam^®800-10SC Series
Properties	Value	Test method
Color	Gray	Visual
Structure & Component	Silicone rubber	******
Density (g/cm³)	0.37	ASTM D1056
Compression Set @100℃(%))	＜5.0	ASTM D1056
Tensile Strength (MPa)	≥0.3	ASTM D412
Elongation At Break (%)	≥90	ASTM D570
Water Absorption (%)	≤5.0	ASTM D412
Breakdown Voltage (kV/mm)	≥2.5	ASTM D149
Volume Resistivity (Ω·cm)	≥1.0 x 10¹⁴	ASTM D257
Temperature Range (℃))	-55~200	******
Flame Rating	V-0	UL94 (E331100)

Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam^® Series can be die-cut into different shapes provided.

For More different thickness,please contact us.

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle 0

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
