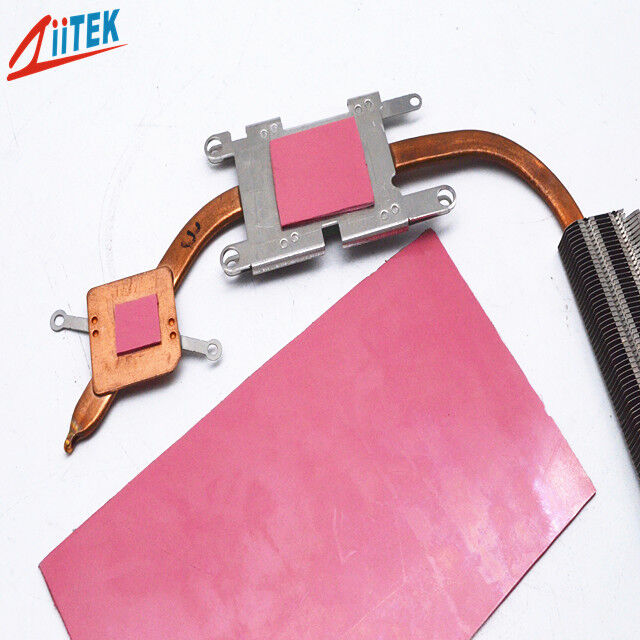

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Ziitek
Certification: UL & RoHS
Numéro de modèle: TIF200-30-25S
Conditions de paiement et expédition:
Quantité de commande min: 1000 pièces
Prix: 0.1-10 USD/PCS
Détails d'emballage: Cartons de 24*13*12 cm
Délai de livraison: 3-5 jours ouvrables
Conditions de paiement: T/T
Capacité d'approvisionnement: 1000000 PC / mois
Contact
Description de produit détaillée
Nom des produits: Protection thermique molle de silicone thermoconductrice de protection thermique d'épaisseur mul Constante diélectrique: 4,5 MHz
Mots-clés: Coussinets thermiques doux échantillon: Échantillon gratuit
Conductivité thermique: 3.0W/m-K Plage d'épaisseur: 0,010"~0,200"(0,25mm~5,0mm)
Couleur: Rose/rose clair Classement au feu: 94 V0
Tension de claquage (V/mm)): VAC ≥ 5500 Application: produits électriques

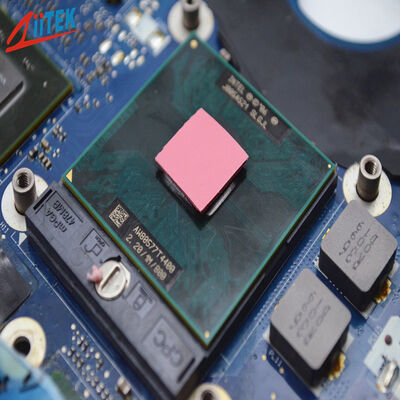

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



The TIF®200-30-25S Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation,and soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdownvoltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces,providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation, such as power devices, new energy vehicles, and portable electronic devices.



Features


> Good thermal conductive: 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant, and scratch-resistant performance

> RoHS compliant



> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Motherboard chip
> Radiator
> AI Processors AI Servers

> Power Electronics

> Automotive Electronics
> Consumer Electronics



Typical Properties of TIF®200-30-25S Series
Property Value Test method
Color Pink/Light Pink Visual
Construction & Compostion Ceramic filled silicone elastomer -
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 45 Shore 00 45 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ -
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specification


Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)



Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).



The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online





Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
