Aperçu Produitsprotection de courant ascendant de silicone

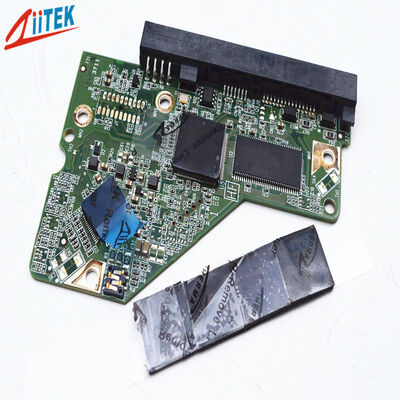

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Ziitek
Certification: UL & RoHS
Numéro de modèle: TIF100-60-01U
Conditions de paiement et expédition:
Quantité de commande min: 1000 pièces
Prix: 0.1-10 USD/PCS
Détails d'emballage: Cartons de 24*13*12 cm
Délai de livraison: 3-5 jours ouvrables
Conditions de paiement: T/T
Capacité d'approvisionnement: 1000000 PC / mois
Contact
Description de produit détaillée
Nom des produits: Feuille thermoconductrice Ultra-douce à base de Silicone haute Performance pour produits électroniqu Épaisseur: 0,25-5,0 mmT(0,010"~0,20")
Application: Produits électroniques, stockage d'énergie, industriel Gravité spécifique: 3.2 g/cc
Tension de claquage diélectrique: >5 500 VCA Couleur: Noir
Mots-clés: Feuille thermoconductrice Lieu d'origine: Élastomère de silicone chargé en céramique
Conductivité thermique: 6.0W/m-K

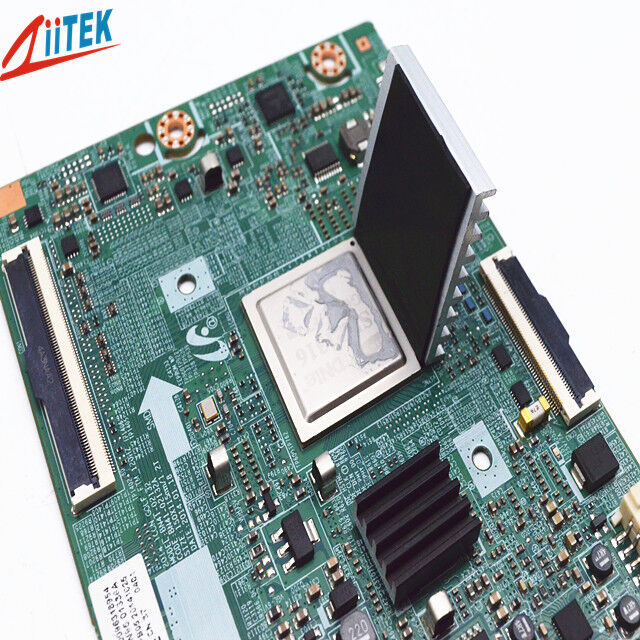

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial



Company profile



Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:



Thermal gap pad



Thermal graphite sheet/film



Thermal double-sided tape



Thermal insulation pad



Thermal grease



Phase change material



Thermal gel



All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL



Products description


The TIF®100-60-01U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> CPU
> Display card
> Mainboard/mother board

> AI Processors AI Servers

> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip



Typical Properties of TIF®100-60-01U Series
Property Value Test method
Color Black Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.2 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 6.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 6.0 W/m-K ASTM D5470
6.0 W/m-K ISO22007

Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200 (5.00 mm) with increments of 0.010 (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


TheTIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
