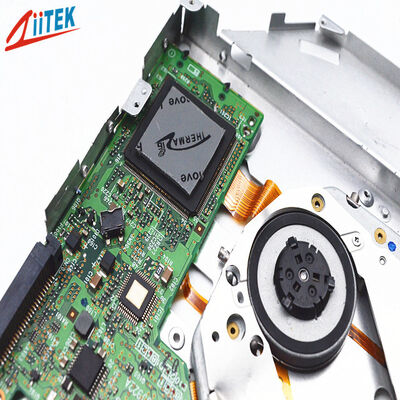

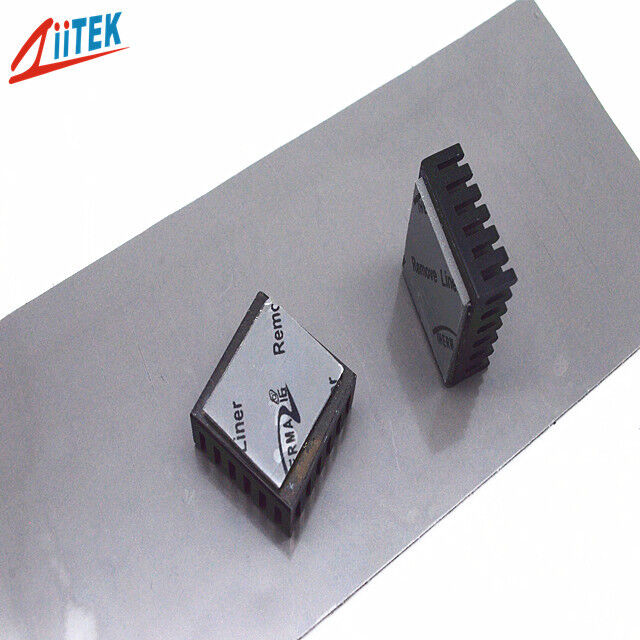

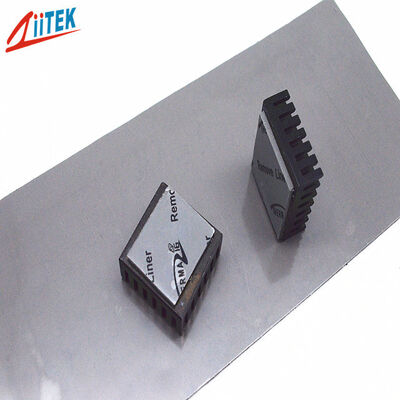

Name: Ultra-Soft 1.8W Thermally Conductive Gap Filler Pads For Datacom Electric Vehicle Electronic Products
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF500-18-11U
Price: 4.10 USD
Availability: InStock

Aperçu Produits protection de courant ascendant de silicone

Ultra-Soft 1.8W Thermally Conductive Gap Filler Pads For Datacom Electric Vehicle Electronic Products

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ziitek
Certification:	UL & RoHS
Numéro de modèle:	TIF500-18-11U

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	0.1-10 USD/PCS
Détails d'emballage:	Cartons de 241312 cm
Délai de livraison:	3-5 jours ouvrables
Conditions de paiement:	T/T
Capacité d'approvisionnement:	1000000 PC / mois

Contact

Description de produit détaillée

Nom des produits:	Tampons de remplissage d'espace thermoconducteurs ultra-doux de 1,8 W pour les produits électron	Couleur:	Gris foncé
Densité (g/cm³):	2.5	Mots-clés:	Plaque d'étanchéité thermique
Épaisseur:	0,25-5,0 mmT	Conductivité thermique:	1.8W/m-K
Tension de claquage (V/mm):	>5500	Construction:	Élastomère de silicone chargé en céramique
application:	Produits électroniques pour véhicules électriques Datacom

Ultra-Soft 1.8W Thermally Conductive Gap Filler Pads For Datacom Electric Vehicle Electronic Products

Products description

TIF^®500-18-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance

Application:

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of The TIF^®500-18-11U Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.5		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	27 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.8 W/m-K		ASTM D5470
	1.8 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Ultra-Soft 1.8W Thermally Conductive Gap Filler Pads For Datacom Electric Vehicle Electronic Products 0

Company profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
