Name: Good Flexibility And Fillability Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-50-50E
Price: 4.10 USD
Availability: InStock

Aperçu Produits protection de courant ascendant de silicone

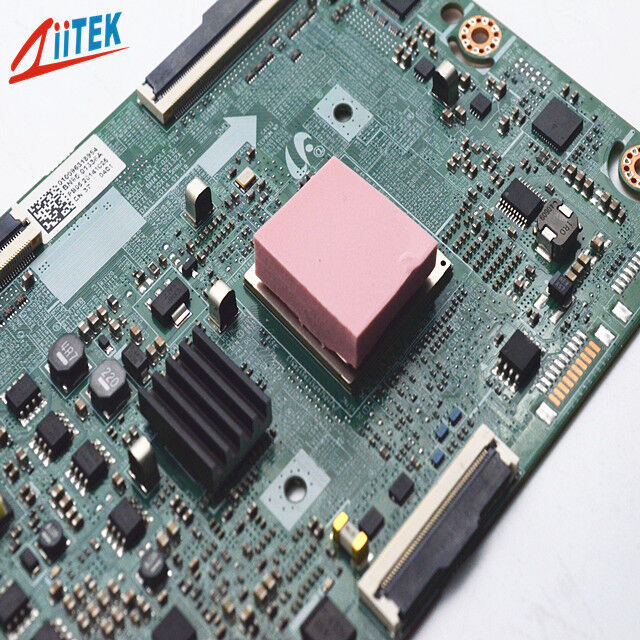

Good Flexibility And Fillability Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ziitek
Certification:	UL & RoHS
Numéro de modèle:	TIF100-50-50E

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	0.1-10 USD/PCS
Détails d'emballage:	24 * 13 * 12cm Cartons
Délai de livraison:	3-5 jours ouvrables
Conditions de paiement:	T/T
Capacité d'approvisionnement:	1000000 PC / mois

Contact

Description de produit détaillée

Nom des produits:	Remplisseur d'espace thermique à base de silicone, bonne flexibilité et capacité de remplissage,	Couleur:	Rose
Construction:	Élastomère de silicone chargé en céramique	Gravité spécifique:	30,3 g/cc
Mots-clés:	Remplisseur d'espace thermique	Tension de panne diélectrique:	> 5500 VAC
Conductivité thermique:	5.0W/m-k	Épaisseur:	0.25 à 5.0 mm
Application de l'accord:	Processeurs IA Serveurs IA

Good Flexibility And Fillability Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers

Company Profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Product discription

TIF^®100-50-50E Series is a well-balanced, general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductive: 5.0W/mK

> Good Flexibility And Fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

> Available in varies thicknesses

Applications:

> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF^®100-50-11E Series
Property	Value		Test method
Color	Pink		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.2		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	9.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0 W/m-K		ASTM D5470
	5.0 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16" X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Good Flexibility And Fillability Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers 0
Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
