1.5W/M. K Silicone Thermal Pad Manufacturer Direct Sale High Temperature Thermal Pad For Communication And Network Equipment

1.5W/M. K Silicone Thermal Pad Manufacturer Direct Sale High Temperature Thermal Pad For Communication And Network Equipment

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: Ziitek
Certification: UL & RoHS
Numéro de modèle: TIF100-05U
Conditions de paiement et expédition:
Quantité de commande min: 1000pcs
Prix: 0.1-10 USD/PCS
Détails d'emballage: 24 * 13 * 12cm Cartons
Délai de livraison: 3-5 jours de travail
Conditions de paiement: T / t
Capacité d'approvisionnement: 1000000 PC / mois
Contact
Description de produit détaillée
Nom de produits: 1,5 W/M. K – coussin thermique en Silicone, vente directe, coussin thermique haute température pour Mots clés: Coussin thermique
Échantillon: Échantillon gratuit Gamme d'épaisseur: 0,010"~0,200"(0,25mm~5,0mm)
Incendie: 94 V0 Couleur: Bleu
Constante diélectrique: 4.5 MHz Conductivité thermique: 1,5 W/m-K
Tension de panne diélectrique: > 5500 VAC Application: Équipements de communication et de réseau

1.5W/M. K Silicone Thermal Pad Manufacturer Direct Sale High Temperature Thermal Pad For Communication And Network Equipment



Company Profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Ziitek TIF®100-05U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure



Typical Properties of TIF®100-05U Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.010"(0.25mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 27±5 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

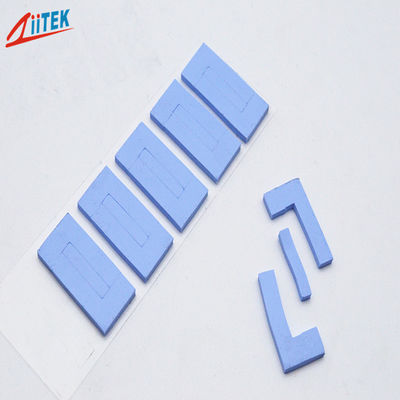

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



1.5W/M. K Silicone Thermal Pad Manufacturer Direct Sale High Temperature Thermal Pad For Communication And Network Equipment 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
